Solution description
BP5768D is a 5-channel high precision dimmable constant-current linear LED driver，compatible with ERP directive EU2019/2020 and current distortion standard IEC 61000-3-2:2019，and also can support CEC application。Good line regulation performance, high precision analog output current dimming，no output current ripple，and no magnetic component。Suitable for small size, low cost dimmable LED application

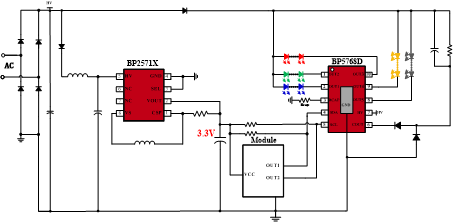

Solution schematic
Performance characteristics

    IEC61000-3-2:2018 harmonic standard

    Pst LM<1，SVM<0.4, DF>0.7

    5-channel LED, 0.1% dimming

    OUT1~5 max 90mA output current

    1024 level control by I2C interface

Scheme selection
Product Package Output Power 90～264Vac power Output specification Maximum saturation current 176～264Vac power Boost Flyback
BP5768D ESSOP10 10W 90mA
